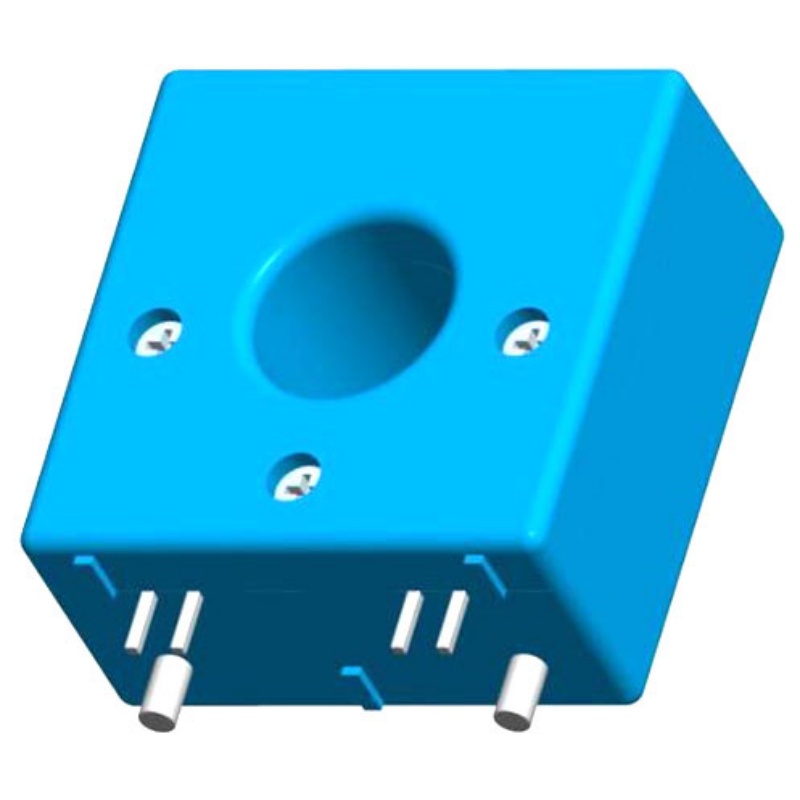

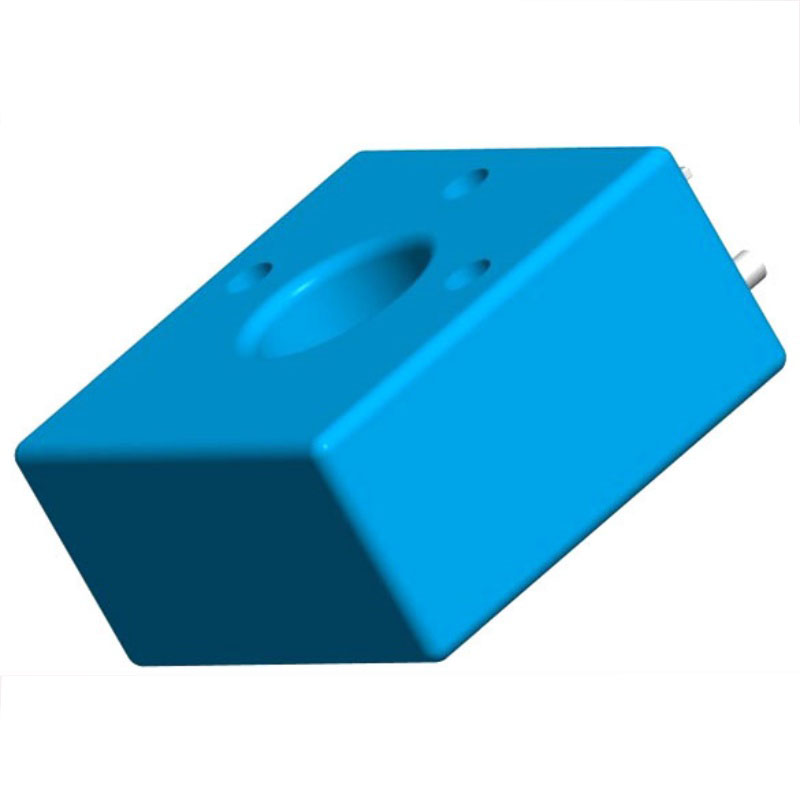

FCVD-16S Series Fluxgate Current Sensor(dual power supply)-1
Product Name: Flux Gate Leakage Current Sensor
Product series: FC * * -16S**
Input current: 6mADC/30mAC B-type leakage current sensor
0.1A~0.4ADC or other
Power supply voltage: Dual power supply ± 12~± 15V,
Single power supply 12V, 5V
Linearity: 1.0%
Output: Analog or switch quantity
This is new type of Fluxgate Current Sensor; it’s based on the principle of magnetic modulation. it can be used to measure small current (leakage currents) including DC, AC, and AC/DC stacks. Primary and secondary isolation, pressure and safety. Applied to ±15V dual power supply system, output ±5V.
More Choices
Feature：
Various type for choose and OEM
Beautiful and small weight.
PCB mount.
Flame retardant (UL94- V0).
Environmental protection( EU RoHS)
Advantage：
High precision
Low loss during insertion.
Strong overload capabiliy
Fast reaction
Strong anti-interference
Good linearity
Low null offset
Low temperature drift
Describe
Use：
Communication base station equipment
New energy equipment
DC charging pile
Communication power
Switching power
Medical equipment
Rail transit
Symmetric fault detection
Power control
Electric welder power supply leakage detection
Solar inverter leakage detection
Size
Circuit schematic
Note: This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.
Connection method：
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.
2. Connect the wire according to the function pin definition of the calibration in the structure diagram.
Specification
|
Parameter |
FCVD-16S01 |
FCVD-16S02 |
FCVD-16S04 |
Unit |
|
|
Ipn |
Input current |
100 |
200 |
400 |
mA |
|
Ip |
Measuring range |
±200 |
±400 |
±800 |
mA |
|
VOUT |
Output voltage |
±5 |
VDC |
||
|
Rm |
Loaded resistance |
≥10kΩ |
kΩ |
||
|
RIS |
Insulation resistance |
＞500 |
MΩ |
||
|
Vc |
Supply voltage |
±15 |
V |
||
|
Ic |
Current consumption |
±35 |
mA |
||
|
Vd |
Isolation hipot |
3 (50Hz/min) |
kV |
||
|
VoE |
Zero offset voltage |
＜50 |
mV |
||
|
TCVoE |
Offset voltage temperature drift |
＜±4 |
＜±3 |
＜±2 |
mV/℃ |
|
TCVout |
temperature drift |
＜±2 |
mV/℃ |
||
|
X |
Accuracy |
＜±1.0（T=25℃，RL=10kΩ） |
% |
||
|
εl |
Linearity |
＜±0.5 |
% |
||
|
Tr |
Response |
≤20 |
mS |
||
|
BW |
Band width |
DC-7k |
DC-11k |
DC-18k |
Hz |
|
Ta |
Working temperature range |
-20~+80 |
℃ |
||
|
Ts |
Storage temperature range |
-40~+85 |
℃ |
||
Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.
