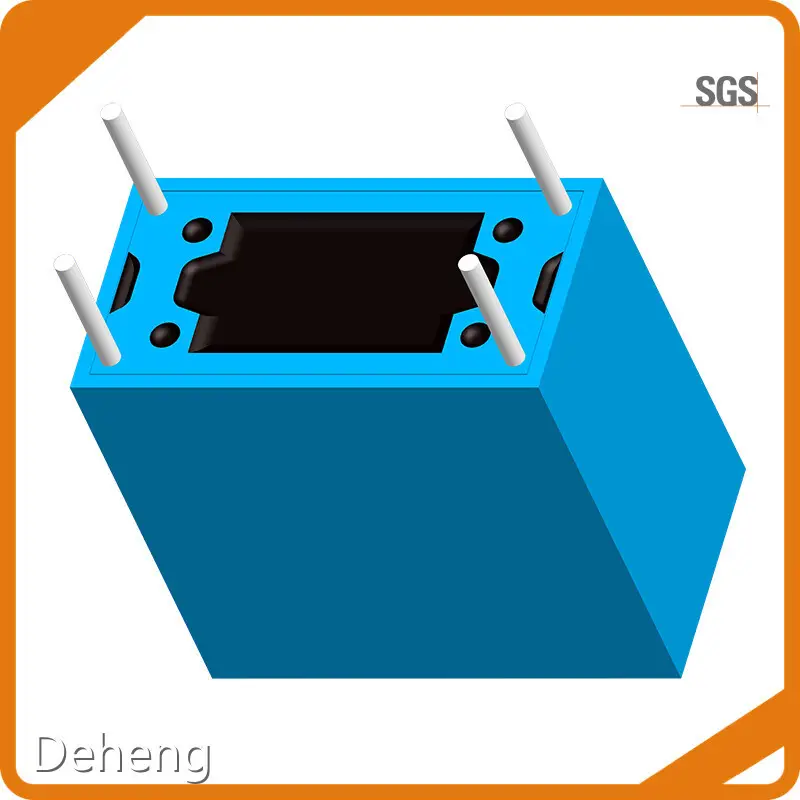

Pcb Mount Current Transformer SZDEHENG
Product Overview
The PCB Mount Current Transformer SZDEHENG is designed according to the national and industry standards for electrical equipment. It can be used in a wide range of applications, including meters, power transmitters, and power testers.
Product Features
The current transformer has a rated input current of 2mA and a rated output current of 2mA. It has an overload multiple of 5 times and a ratio of 1000:1000. It also has a high accuracy level of 0.2 and a linear range of 0-500%. Additionally, it has an isolation withstand voltage of 3kV and can operate within a temperature range of -25°C to +85°C.
Product Value
The PCB Mount Current Transformer offers high accuracy and reliability, making it suitable for precise measurement and testing of electrical currents. Its small size allows for easy installation on PCB boards, saving space in electronic devices. It is also cost-effective compared to other current transformers on the market.
Product Advantages
The current transformer has a low ratio difference of less than 0.2% and a phase difference of less than 10°, ensuring accurate measurements. Its linearity is also less than 0.1%, further enhancing measurement accuracy. The transformer isolates the input and output circuits, providing protection against electrical hazards.
Application Scenarios
The PCB Mount Current Transformer can be used in various scenarios, such as in energy meters, power monitoring systems, power analyzers, and industrial automation equipment. Its compact size and high accuracy make it suitable for use in space-constrained applications where precise current measurement is required.
