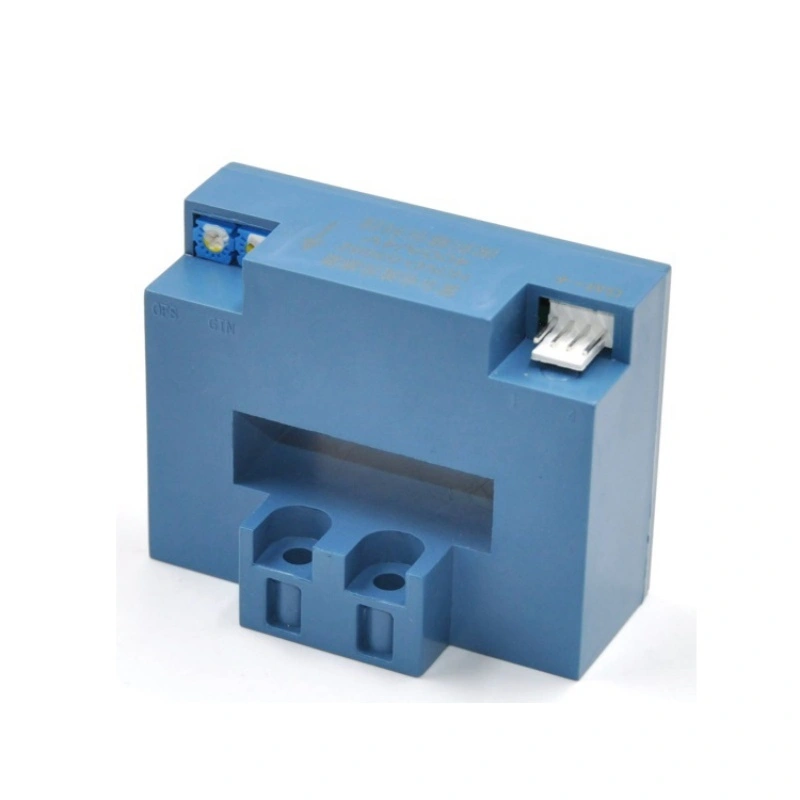

HOVD-53S Series Hall Current Sensor （Dual Power Supply）
INTRODUCTIONS：
These are newly developed hall current sensor series which can be used for detecting of
DC,AC, high frequency, pulse as well as various of irregular wave of current signals.
Primary and secondary isolation, pressure and safety.
Applied to ± 12V or ± 15V dual power supply systems.
More Choices
FEATURES：
Multi range detection of current
Easy to install and fix
Complies with UL94-V0 standard.
Compliant with RoHS environmental requirements
ADVANTAGES：
High precision and good linearity.
Low insert loss,Strong anti-interference ability,
Quick response,Low offset and gain drift.
Good overload capacity,Wide band frequency
APPLICATIONS：
Communication base station equipment
New energy equipment
Welding machine power supply
Communication power supply
Switched mode power supplies(SMPS)
PV inverter
Energy storage power supply
Rail transit
Industrial measurement
Power control
Size
Circuit schematic
Connect：
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, paying attention to the forward and reverse directions of the current.
2. Connect the wires according to the definitions of the functional pins marked in the structural diagram.
Specification
|
|
HOVD-53S51 | HOVD-53S52 | HOVD-53S53 |
HOVD-53S54 | HOVD-53S55 |
HOVD-53S56 | HOVD-53S57 |
Unit |
| Rated input current | 200 | 400 | 600 | 800 | 1000 | 1500 | 2000 | A |
| Test current range | ±400 | ±800 | ±1200 | ±1600 | ±2000 | ±2500 | ±3000 | A |
| Rated output voltage | 4 (T=25℃) | V | ||||||
| Loaded resistence | ≥10 | kΩ | ||||||
| Power voltage | ±12~±15（5%） | V | ||||||
| Current loss | ≤20 | mA | ||||||
| Zero offset voltage | ≤±30 ( T=25℃) | mV | ||||||
| Magnetic offset voltage | ≤±35 ( T=25℃) | mV | ||||||
| Offset voltage temperature drift | ≤±2mV/℃（IP=0 T=-10~+70℃） | mV | ||||||
| Linearity |
≤0.5 ( T=25℃) |
% |
||||||
| Total Accuracy |
≤1 .0 ( T=25℃ VC=±15V) |
% | ||||||
| Response Time |
<5 |
µS |
||||||
| insulation voltage | 3.0 | kV/Min | ||||||
| -3db bandwidth |
DC…20 |
kHz |
||||||
| Working temperature |
-25~+85 | ℃ | ||||||
| Storage temperature |
-40~+90 |
℃ |
||||||
Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.
For more information about our products, welcome to contact us at any time!
