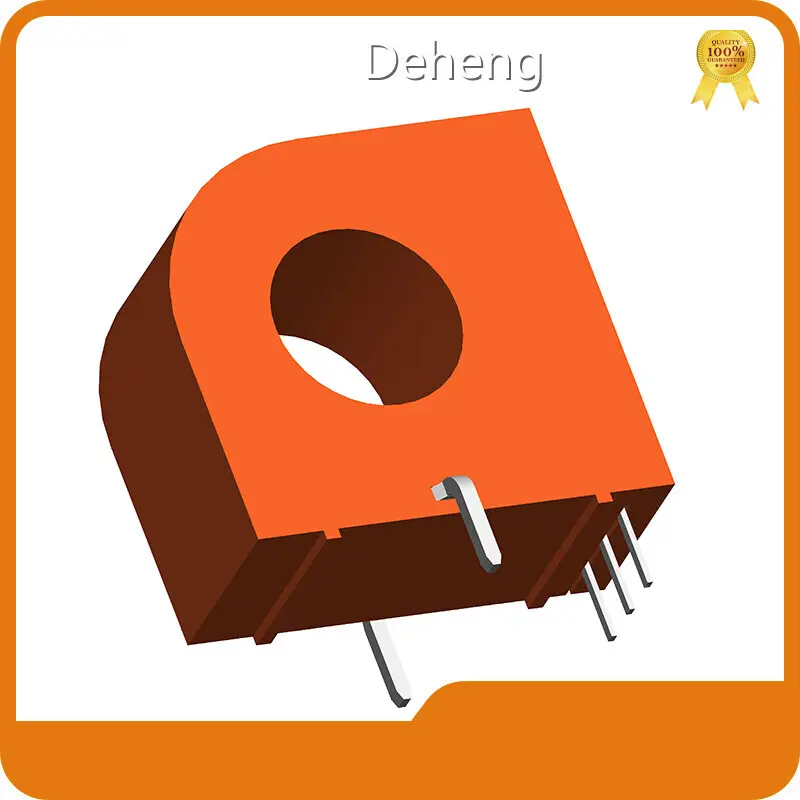

Hall Effect Current Sensor SZDEHENG-1
Product Overview
The Hall Effect Current Sensor SZDEHENG-1 is a newly developed sensor series that can detect DC, AC, high frequency, pulse, and irregular wave current signals. It is suitable for various applications, including solar inverters, power supplies, UPS, welding, and AC variable speed drives.
Product Features
The sensor has multiple models with different input currents and measuring ranges. It has an output voltage of 2.5V or 1.65V, depending on the model, and a loaded resistance of ≥4.7 kΩ. It has a supply voltage of +5V and a low current consumption of less than 15mA. It also has temperature drift control and high insulation resistance.
Product Value
The Hall Effect Current Sensor SZDEHENG-1 provides accurate and reliable current measurement for various applications. It is designed with precision and efficiency in mind, ensuring optimal performance and value for customers.
Product Advantages
The sensor offers high linearity and accuracy, with a response time of less than 10µS. It has a wide working temperature range of -40°C to +85°C and a storage temperature range of -50°C to +125°C. It also has a compact size and circuit schematic for easy integration into different systems.
Application Scenarios
The Hall Effect Current Sensor SZDEHENG-1 is ideal for use in solar inverters(MPPT), combiner boxes, switched mode power supplies(SMPS), power supplies, UPS systems, welding applications, and AC variable speed drives. It can be used in a wide range of industries and applications that require current monitoring and control.
