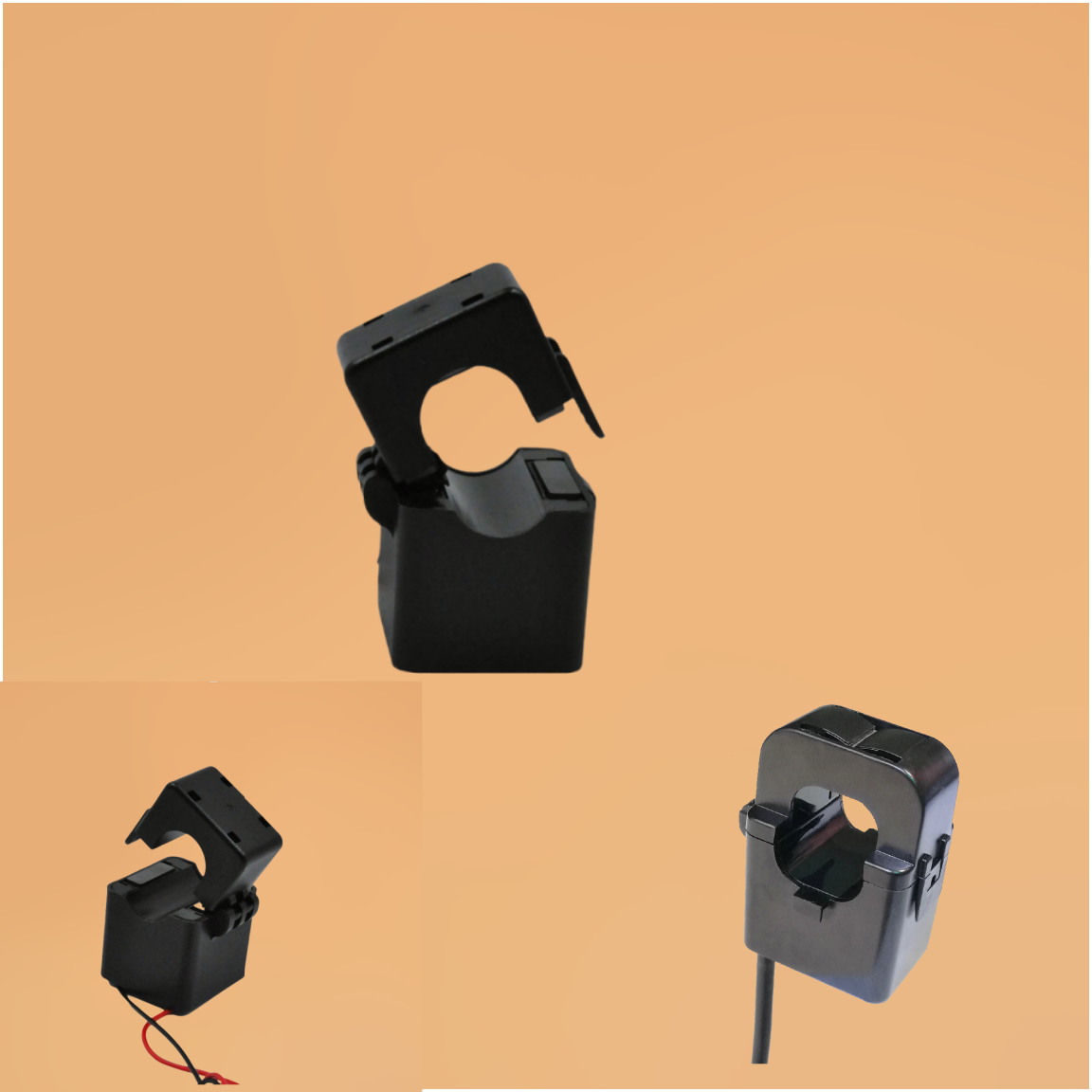

The Basics of Current Transformers
Current Transformers (CTs) play a crucial role in monitoring and transforming electrical currents safely for various applications, including metering and protective relays. By stepping down high input currents to manageable levels, CTs ensure safe operation, isolate high voltage, and allow for grounding of secondary circuits. Understanding key characteristics such as CT ratio, polarity, and accuracy class is essential for selecting the right transformer for your needs, enhancing safety and efficiency in electrical systems.
1. Introduction to Current Transformers
Current Transformers are electromagnetic devices used to measure and monitor the flow of electrical current in conductors. They function by producing a secondary current in proportion to the primary current flowing through them, thus allowing for the safe measurement of high currents in electrical circuits. With the increasing demand for accurate measurement and system protection, CTs have gained prominence across various industries, as they can be integrated into meters, relays, and other control equipment.
CTs operate based on the principle of electromagnetic induction. When the primary current flows through the transformer, it creates a magnetic field that induces a corresponding secondary current. This functionality is vital because it isolates the high voltage circuits from low voltage measuring devices, ensuring safety for both equipment and operators.
2. Understanding CT Ratio
The CT ratio is a crucial parameter that defines the relationship between the primary current input and the secondary current output at full load. For instance, a CT with a ratio of 300:5 indicates that when 300 amps flow through the primary, the secondary will output 5 amps. The proportional nature of this relationship ensures that changes in primary current directly result in scaled changes in secondary output. For instance, if the primary current changes to 150 amps, the secondary output will reduce to 2.5 amps.
Selecting the correct CT ratio is essential, as it directly influences the accuracy and reliability of current measurement. Mismatches in ratios can lead to instrumentation errors, affecting system reliability and safety. Therefore, understanding the current requirements of the application is critical when choosing a CT.
3. The Importance of Polarity
The polarity of a Current Transformer plays a vital role in its installation and operational integrity. Polarity is determined by the winding direction of the transformer coils and how the leads are arranged. All CTs come with a subtractive polarity, with designations for primary and secondary current that guide proper connections. Specifically, (H1) refers to the primary current direction facing the line, (H2) for the load facing direction, and (X1) for the secondary current.
Correctly adhering to polarity is crucial when connecting CTs to power metering devices and protective relays. Incorrect polarity can lead to miscalculations and malfunctions in measurement and protection systems—compromising safety and operational effectiveness.
4. Accuracy Class and Its Significance
Accuracy Class is an essential characteristic that describes the performance of a Current Transformer and the maximum burden allowable on its secondary circuit. CTs are typically categorized into Metering Accuracy CTs and Relaying Accuracy CTs.
**Metering Accuracy CTs** are designed for precision and are utilized by utility companies to ensure accurate billing based on consumption. They operate effectively across a wide range of primary currents, maintaining high accuracy standards.
**Relaying Accuracy CTs**, on the other hand, are slightly less precise but designed to function reliably across various current levels, typically utilized in protective relay systems. The specifications of each CT’s accuracy class can be found on the CT’s nameplate, detailing the rated ratio accuracy, class rating, and maximum burden.
Understanding the CT's accuracy class is vital for ensuring that it performs reliably under the required operational conditions while meeting the performance standards necessary for system protection and billing.
5. Correction Factors for CTs
CTs need to be capable of adapting to varying operational conditions, and this is where correction factors come into play. Correction factors account for the variability in current measurements relative to the rated values, crucial for maintaining accuracy under diverse load conditions.
Typically defined in a chart, these correction factors reflect the relationship between current levels - for instance, when 100% rated current is applied, accuracy might vary slightly as current loads drop to 10%. This variability must be thoroughly understood and considered when applying CTs in different environments and loads to ensure they remain within specified accuracy limits.
6. Key Considerations and Safety Practices
Installation and operation of Current Transformers require precision and care to prevent any safety hazards, particularly from high voltage conditions. Before installation, it's critical to inspect the physical condition of the CT, verify that it matches the device's requirements, and ensure adequate spacing between the primary and secondary circuit wiring.
When installing CTs, they should remain short-circuited until wiring is complete to prevent potentially dangerous high voltages from developing due to open circuits. It is vital always to connect a burden load to the secondary circuit before use, as open circuits can lead to safety risks.
Conclusion
As a reputable provider in the electrical systems field, SZDEHENG (Deheng) takes pride in facilitating understanding of complex technologies like Current Transformers. By being aware of CT ratios, polarity, accuracy class, correction factors, and safety practices, engineers and technicians can effectively utilize CTs for safer and more efficient electrical monitoring. This understanding is vital in ensuring reliable measurements, safeguarding equipment, and careful system design, ultimately leading to improved performance in electrical systems.
