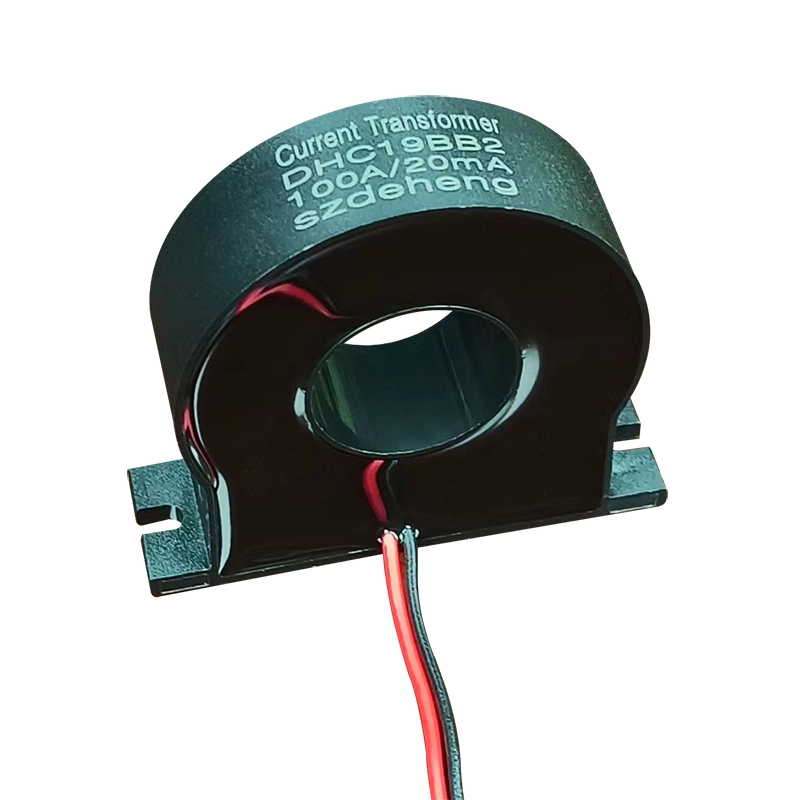

DHC19B Series Current Transformer

Feature:

1.Nanocrystalline core

2.High precision, good linearity

3.Epoxy potting , Safe and reliable

4.Flame retardant (UL94- V0)

5.Environmental protection( EU RoHS)

6.Small size and light weight

7.Easy to assemble and weld

8.Guideline: National standard gb 1208-2006

9.Industry Standard jbt 10665-2006

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data
    电流互感器19B-2
    电流互感器19B-2
    电流互感器19B-3 拷贝
    电流互感器19B-3 拷贝
    电流互感器19B-2 拷贝
    电流互感器19B-2 拷贝
    电流互感器19B-4 拷贝 (2)
    电流互感器19B-4 拷贝 (2)

    Describe

    Use Temperature:-25℃-+85℃

    Relative humidity:≤95%


    Scope of application:Suitable for converting large currents into small currents,

    Used for precision measurement or as electrical safety protection.


    Notes:

    If the load connected to the secondary of the transformer exceeds the rated load capacity, it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.



    电流互感器19B-1 拷贝

    Size


    Circuit schematic

    Note: This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.


    Specification

    Project

    Performance

    Model

    DHC19BB1

    DHC19BB2

    DHC19BB3

    DHC19BB4

    DHC19BB7

    DHC19BB8

    Rated input current

    100A

    100A

    150A

    200A

    100A

    200A

    Rated output current

    50mA

    20mA

    75mA

    100mA

    100mA

    200mA

    Allow overload multiple

    1.2 Times

    Ratio

    2000:1

    5000:1

    2000:1

    1000:1

    Ratio difference

    ≤0.1%

    ≤0.2%

    Phase difference

    ≤5´

    ≤10´

    Accuracy level

    0.1

    0.2

    Linear range

    0~120%

    Linearity

    ≤0.1%

    Load Resistance

    20Ω

    100Ω

    20Ω

    isolation withstand voltage

    3kV/2mA/1min

    frequency range

    20~20kHz(Test frequency:50Hz)

    Working Temperature

    -25~85℃

    Storage Temperature

    -40~90℃

    Relative humidity

    ≤95%

    Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.
