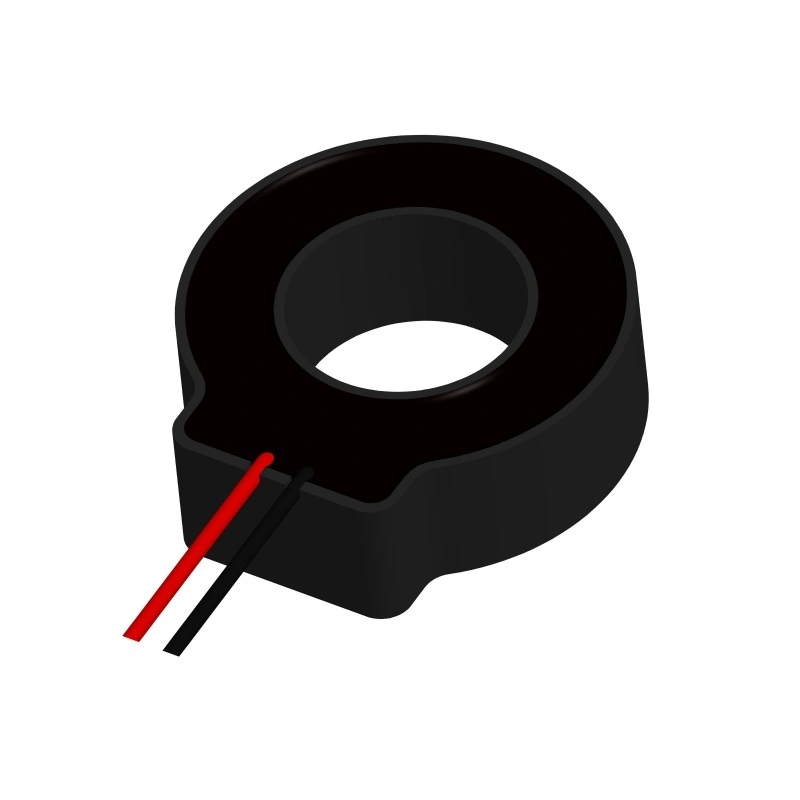

DHC10C Series Current Transformer

Feature

1.    Nanocrystalline core

2.    High precision, good linearity

3.    Epoxy potting , Safe and reliable

4.    Flame retardant (UL94- V0),

5.    Environmental protection( EU RoHS).

6.
Small size and light weight

7.    Easy to assemble and weld

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data
    10c-b1_副本
    10c-b1_副本
    10c-b2_副本
    10c-b2_副本
    10c-b3_副本
    10c-b3_副本
    10c-b4_副本
    10c-b4_副本
    10c-b5_副本
    10c-b5_副本

    Describe

    National standard gb 1208-2006;

    Industry Standard jbt 10665-2006.

    Use Temperature:-25℃-+85℃

    Relative humidity:≤95%

    Scope of application:

    Suitable for instrumentation, etc., need to convert large current into

    small current for precise measurement, Used for precision measurement or as electrical safety protection.


    Notes:

    If the load connected to the secondary of the transformer exceeds the rated load capacity,it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.


    10C-1-拼图

    Size

    10C-1-参数

    Circuit schematic

    Note: This schematic diagram is the basic working principle of the transformer.  We can design the transformer sampling circuit for the customer.

    10C-2-参数

    Specification

    No

    Items

    Performance

    1

    Model

    DHC10CB1

    DHC10CB2

    DHC10CB3

    DHC10CD1

    DHC10CD2

    DHC10CF1

    2

    Rated input current

    50A

    100A

    100A

    50A

    100A

    50A

    3

    Rated output current

    25mA

    50mA

    20mA

    50mA

    100mA

    100mA

    4

    Allow overload multiple

    1.2 times

    5

    Ratio

    2000:1

    5000:1

    1000:1

    500:1

    6

    Ratio difference

    ≤0.1%

    ≤0.2%

    ≤0.5%

    7

    Phase difference

    ≤5´

    ≤10´

    ≤30´

    8

    Accuracy level

    0.1

    0.2

    0.5

    9

    Linear range

    0120%

    10

    Linearity

    ≤0.1%

    ≤0.2%

    11

    Load Resistance

    20Ω

    12

    isolation withstand voltage

    3kV/2mA/1min

    13

    frequency range

    2020kHz(Test Frequency:50Hz)

    14

    Working Temperature

    -2585℃

    15

    Storage Temperature

    -4090℃

    16

    Relative humidity

    ≤95%

    Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.

    For more information about our products, welcome  to contact us at any time!
