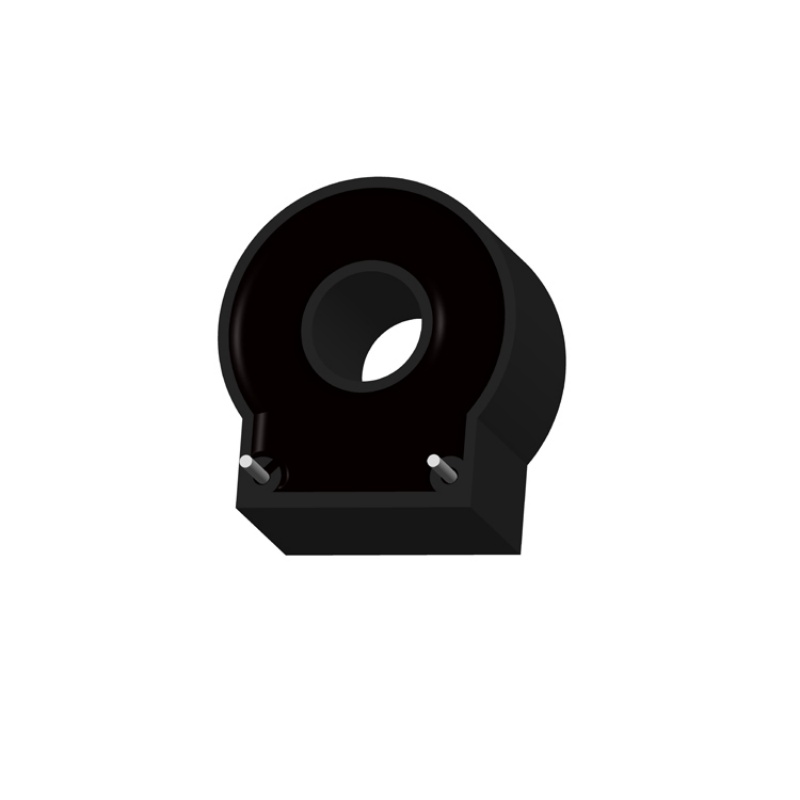

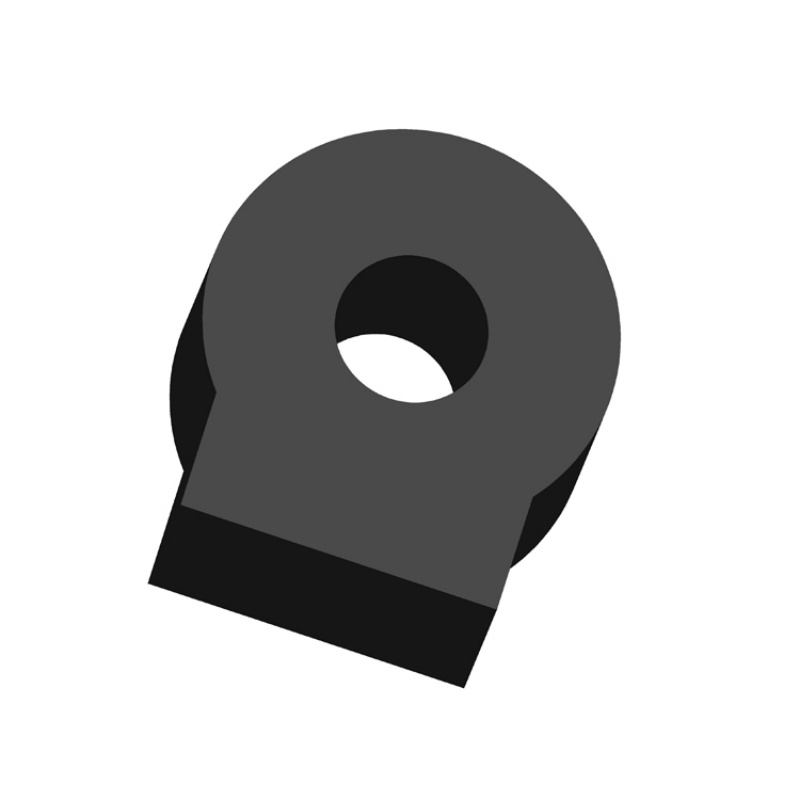

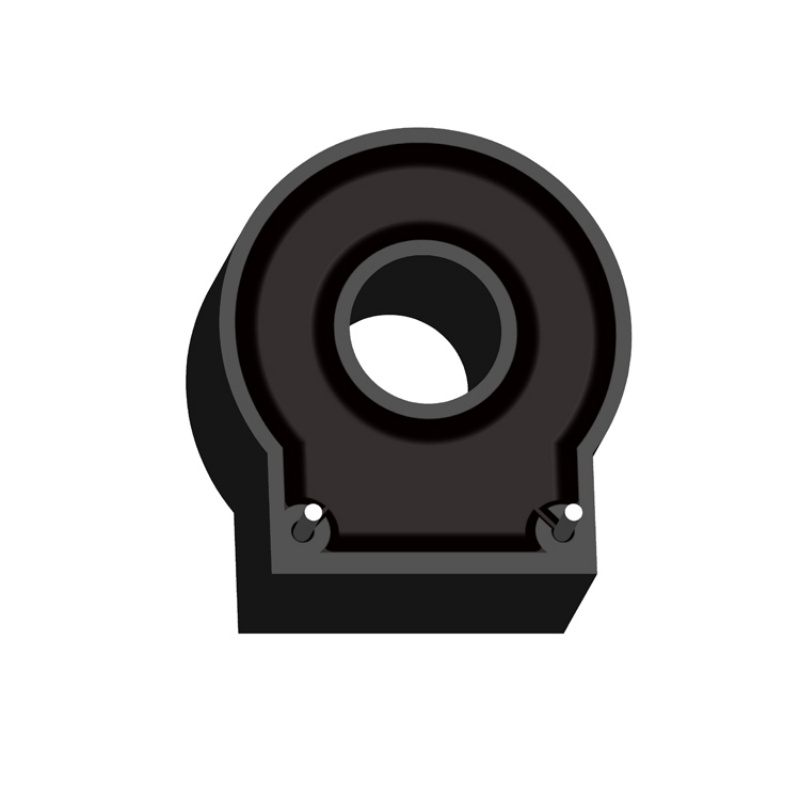

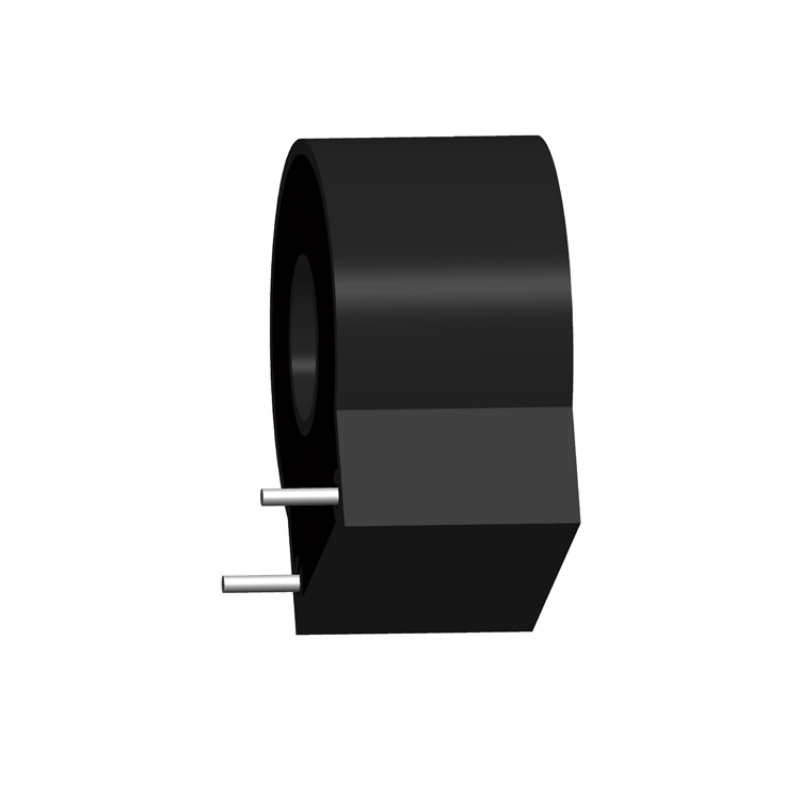

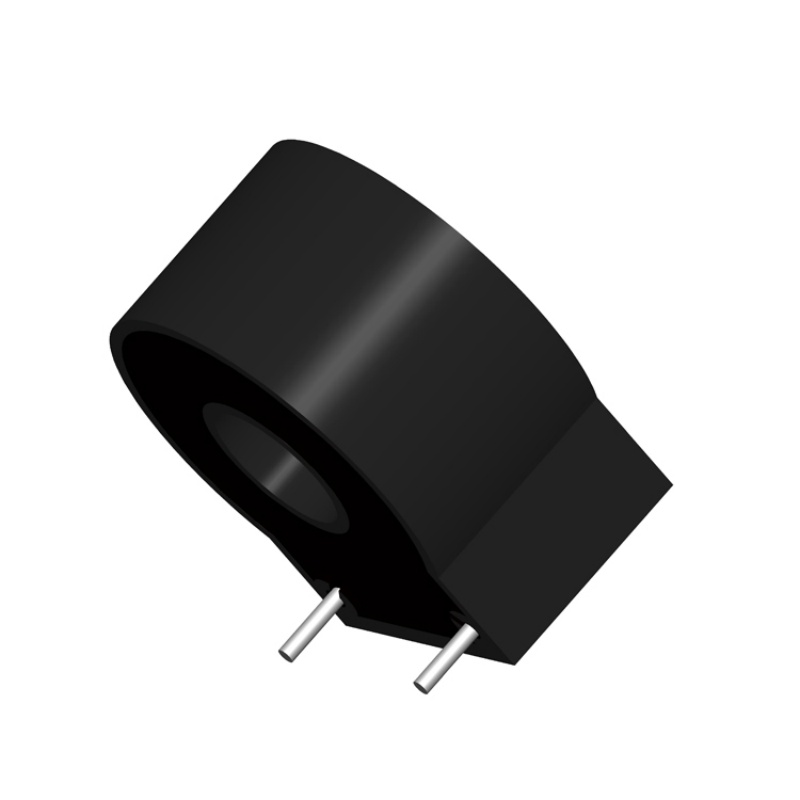

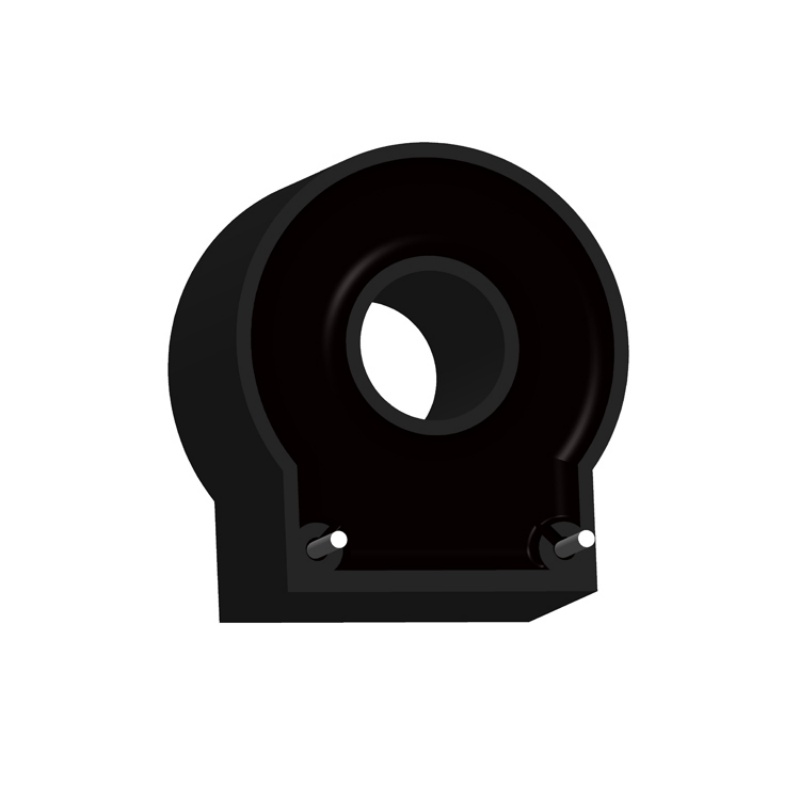

DHC26A Series Current Transformer

Feature

1.
Permalloy core

2.    High precision, good linearity

3.    Epoxy potting , Safe and reliable

4.    Flame retardant (UL94- V0),

5.    Environmental protection( EU RoHS).

6.    Small, Compact Design

7.    Easy to assemble and weld

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data
    26A-2_副本
    26A-2_副本
    26A-1_副本
    26A-1_副本
    26A-3_副本
    26A-3_副本
    26A-4_副本
    26A-4_副本
    26A-5_副本
    26A-5_副本

    Describe

    National standard gb 1208-2006;

    Industry Standard jbt 10665-2006.

    Use Temperature:-25℃-+85℃

    Relative humidity:≤95%

    Scope of application:

    Suitable for instrumentation, etc., need to convert large current into

    small current for precise measurement, Used for precision measurement or as electrical safety protection.


    Notes:

    If the load connected to the secondary of the transformer exceeds the rated load capacity,it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.


    26A-拼图-2

    Size

    26A-规格-1

    Circuit schematic

    Note: This schematic diagram is the basic working principle of the transformer.  We can design the transformer sampling circuit for the customer.

    26A-参数-2

    Specification

    No

    Project

    Performance

    1

    Model

    DHC26AB1

    DHC26AB2

    DHC26AB3

    DHC26AB4

    DHC26AD2

    DHC26AD3

    2

    Rated input current

    10A

    20A

    32A

    40A

    20A

    30A

    3

    Rated output current

    5mA

    10mA

    16mA

    20mA

    20mA

    30mA

    4

    Allow overload multiple

    1.2 times

    5

    Ratio

    2000:1

    1000:1

    6

    Ratio difference

    ≤0.1%

    ≤0.2%

    7

    Phase difference

    ≤5´

    ≤10´

    8

    Accuracy level

    0.1

    0.2

    9

    Linear range

    0120%

    10

    Linearity

    ≤0.1%

    11

    Load Resistance

    20Ω

    12

    isolation withstand voltage

    3kV/2mA/1min

    13

    frequency range

    2020kHz(Test frequency:50Hz)

    14

    Working Temperature

    -2585℃

    15

    Storage Temperature

    -4090℃

    16

    Relative humidity

    ≤95%

    Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.
